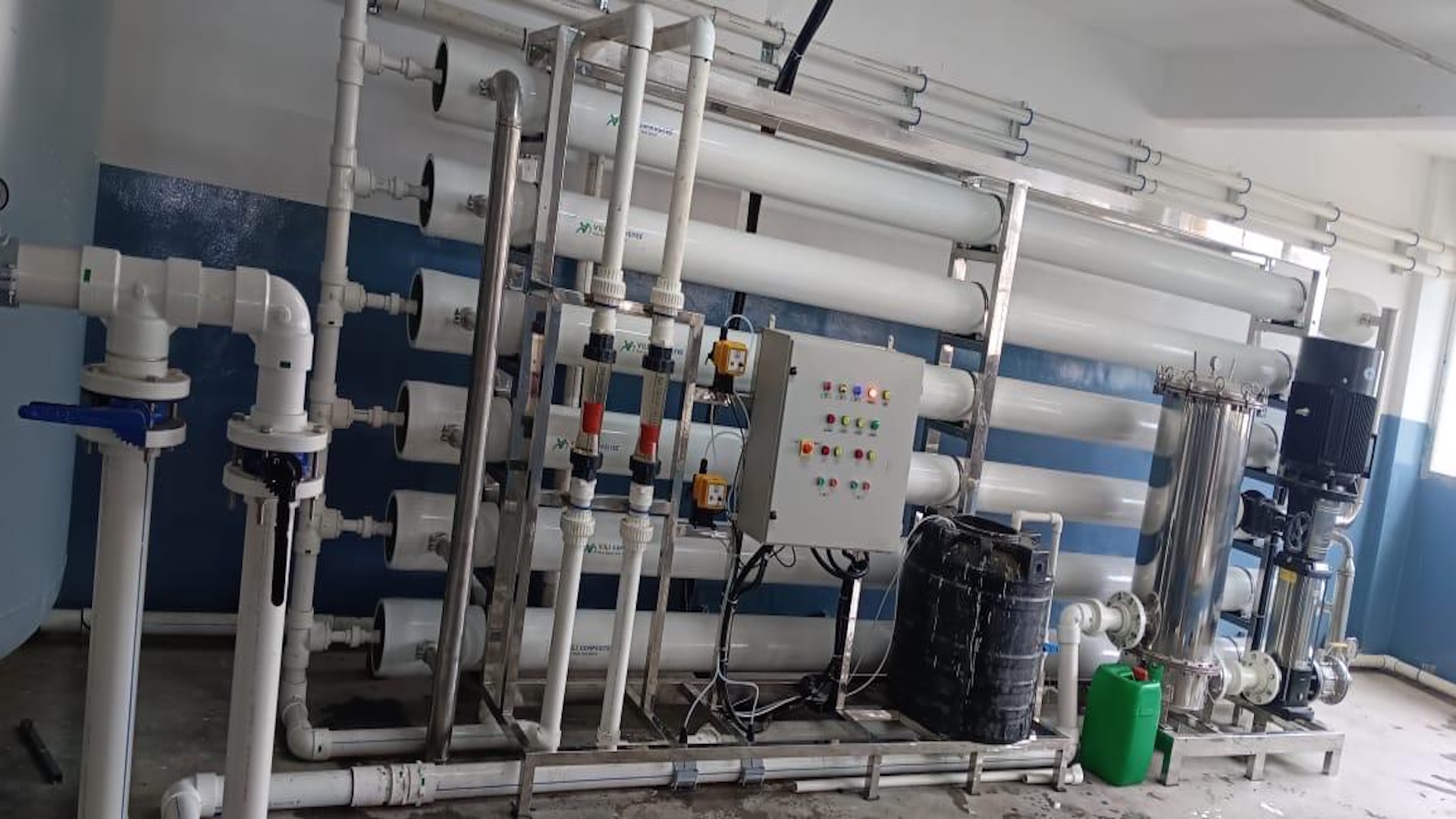

600 KLD RO AT SURAT

A 600 KLD Reverse Osmosis (RO) plant is a high-capacity water purification system designed for industrial or municipal applications. It utilizes semi-permeable membranes to remove dissolved solids, salts, and contaminants from raw water, producing high-purity water for various uses.

Key Components and Specifications:

1. Capacity: 600 cubic meters per day (~600,000 liters/day).

2. Membranes:

           30 Nos. of 80×40-inch RO membranes. These membranes are designed for high-rejection rates and long operational life.

3. Pressure Tubes:

           6 Nos. pressure tubes, each housing multiple membranes. Made from high-grade FRP Material for durability and resistance to high-pressure conditions.

4. Operating Pressure: Typically ranges between 4 to 7 bar depending on feed water salinity.

5. Pre-Treatment System: Includes sand filters, activated carbon filters, and anti-scalant dosing to protect membranes.

6. Energy Recovery: If applicable, pressure exchangers or energy recovery devices optimize efficiency.

7. Post-Treatment: UV sterilization, pH adjustment, or remineralization if required for potable water.

8. Control System:

           Fully automated PLC-based operation for monitoring and control. Integrated flow meters, pressure sensors, and conductivity analyzers for real-time data.

Application Areas:

• Industrial water treatment (power plants, refineries, textiles).
• Municipal and drinking water supply.
• Desalination of brackish or seawater.
• Process water for food, beverage, and pharmaceutical industries.

This custom-engineered RO system ensures consistent, high-quality water output with optimal efficiency and low operational costs.
